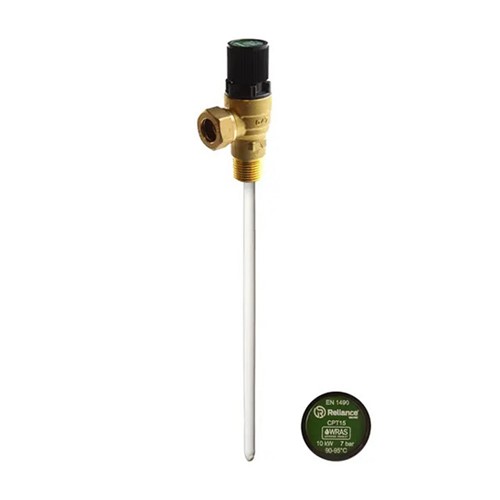

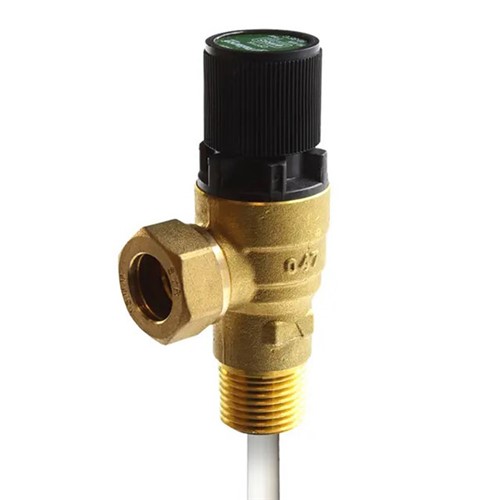

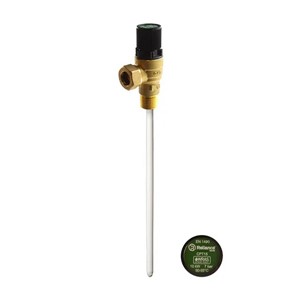

    RWC CPT15 1/2" MBSP x 15mm 7 Bar 195mm Pressure & Temperature Relief Valve - PTEM540100

    RWC CPT15 1/2" MBSP x 15mm 7 Bar 195mm Pressure & Temperature Relief Valve - PTEM540100RWC CPT15 1/2" MBSP x 15mm 7 Bar 195mm Pressure & Temperature Relief Valve - PTEM540100RWC CPT15 1/2" MBSP x 15mm 7 Bar 195mm Pressure & Temperature Relief Valve - PTEM540100
    Product thumbnail.
    Product thumbnail.

    £72.95

    £60.79

    AVAILABILITY: Delivery in 3-7 Days

    AWC520-475-0774

    Ask Question

    The Reliance CPT15 Pressure and Temperature Relief Valve has been designed to provide protection against over pressurization, which can occur within an Unvented Hot Water system if the input temperature controls fail. The valve is designed to be fitted in the upper portion of the cylinder as this is where the hottest system temperatures will be found. If the system temperature rises beyond 95 degrees, the wax mixture within the element of the temperature probe will expand, causing the valve to lift off its seat and relieve water to waste. If the water pressure increases (without temperature increase) the valve will stay closed until the set pressure of the relief mechanism is reached, at which point the valve will open to relieve the excess pressure build-up.

    Manufacturer product code: PTEM540100

    Features and Benefits
      • 1/2" MBSP (Inlet) x 15mm compression (Outlet) connections
      • Cartridge construction provides long life span and service of the valve
      • 7.0 Bar Temperature Pressure Relief Valve
      • 195mm Probe Length
      • 90 - 95 degress temperature relief
      • 10kw discharge
      • Brass body
    No extended details available.
