    Altecnic Caleffi Dirtmag 1 1/4" Horizontal Brass Dirt Separator - 546307

    Altecnic Caleffi Dirtmag 1 1/4" Horizontal Brass Dirt Separator - 546307
    Product thumbnail.

    £504.91

    £420.76

    AVAILABILITY: Delivery in 3-7 Days

    ALT546307

    Ask Question

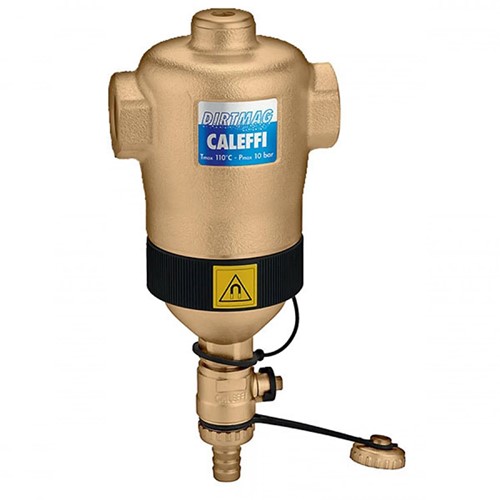

    Dirtmag Brass Dirt Separator 1 1/4" 546307 Horizontal by Caleffi

    The Dirtmag dirt separator is manufactured from brass with an internal filter element and external magnet. The magnet is positioned around the body below the flow line for improved collection of ferrous particles.

    The conventional method is to postion the magnet inside the collection chamber but the Dirtmag has the magnet positioned around it, helping too maintain a low pressure loss.

    Altecnic Product Code: 546307

    Features and Benefits
      • Supplied with female threaded connections
      • Supllied with parallel threaded ends complying with BS EN ISO 228-1 and hose union ball blow down valve
      • Top connection threaded 1/2" female supplied with blanking plug
      • Brass
      • Medium: water glycol solution
      • Maximum percentage of glycol: 50%
      • Max working pressure: 10 bar
      • Temperature range: 0 - 110 C
      • Particle separation rating down to 5 m
      • No insulation

    Specification
      Size1 1/4"
      ConnectionsF x F BSP
      OrientationHorizontal
