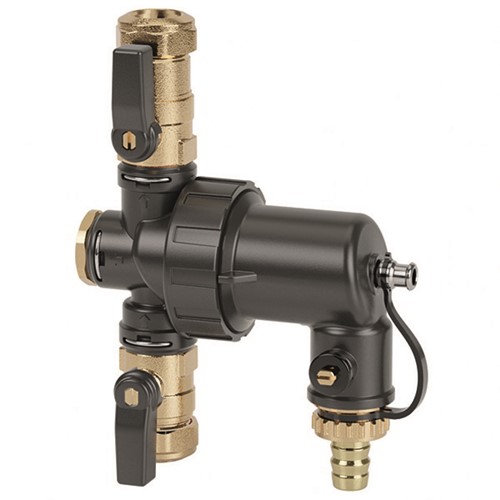

The DIRTMAG MINI dirt separator and strainer separates impurities from air conditioning systems to protect the boiler circulator and heat exchanger.

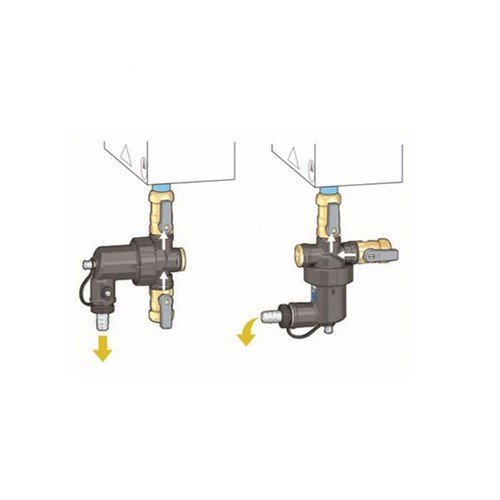

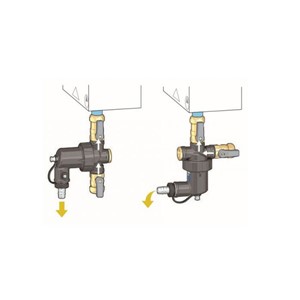

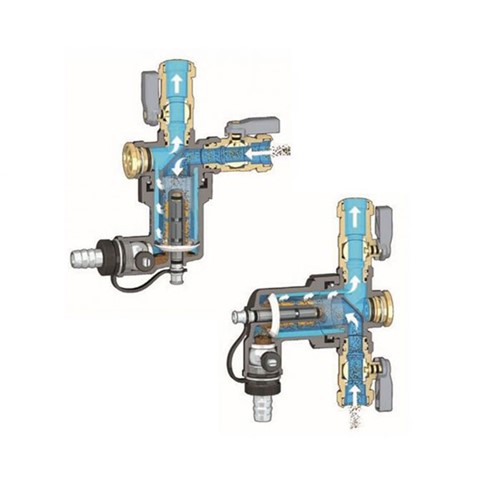

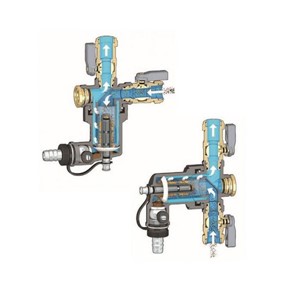

The removable magnet captures the ferromagnetic particles, whilst the mesh strainer and dirt separator capture the remaining debris. The compact design of this dirt separator strainer is ideal for installation under wall boilers, even in small spaces. The special inlet layout allows for vertical or horizontal installation, with angled or in-line connections as required.
The circulating water in heating and hot water systems will contain debris that has entered the pipe work during installation and construction. Debris can consist of flux residue, thread sealing tape or airborne particles to name a few. Radiators will rust internally over time and this circulates with the lime scale and dirt in the water causing wear and tear, blockages and damage within the system. A tell-tale sign is dirty black sludge which can settle at the bottom of radiators this is known as black iron oxide. Fitting a Dirtmag mini filter to the pipe work of the boiler or heating system will attract and trap this sludge by means of a magnetic filter and separator to prevent damage to the heating system. In turn, this will improve efficiency and prolong the lifespan of the system.
Like all parts of the heating system, the Dirtmag mini compact magnetic filter should be maintained. This will usually coincide with the annual boiler service.

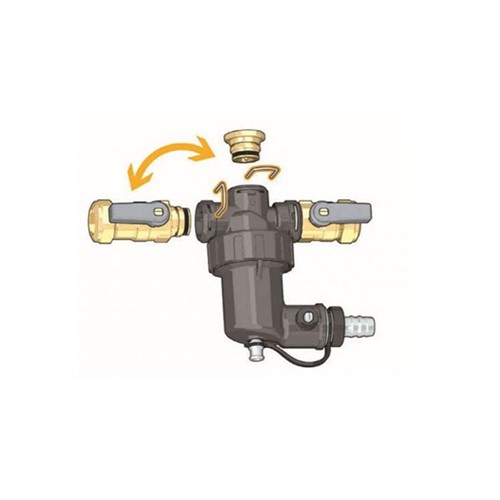

The build up of sludge needs to be removed and can be done easily by unscrewing the bottom of the valve and washing the filter thoroughly under running water. It is also possible to drain the impurities without disassembling the body just by removing the magnet and opening the dedicated drain although you should only perform this function when the system is not in operation.
Altecnic product code : 114-1020
