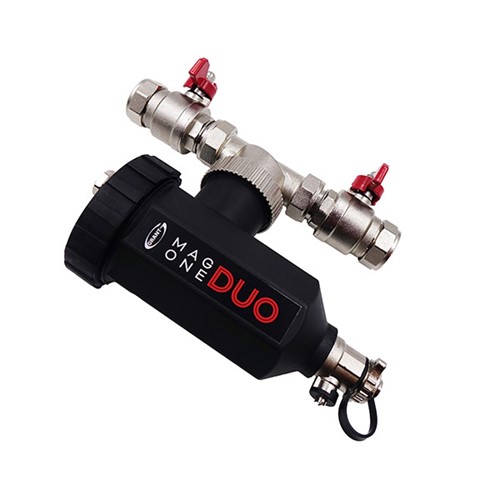

Grant Mag One Duo 28mm Magnetic Filter - VM01DUO

Click on image to enlarge

Grant Mag One Duo 28mm Magnetic Filter - VM01DUO

.Read all reviews ( .)

£157.74

£131.45

AVAILABILITY: 3

GRT-VM01DUO

Quantity:

Ask Question

The Grant Mag One DUO is an effective magnetic filter for use with boilers and air source heat pumps which is designed to capture non-ferrous debris and magnetite circulating within central heating systems.

Installing a suitable magnetic filter to a heating system is strongly recommended as it can prevent the accumulation of debris within the system pipework which can cause damage to the wider system and components. The Grant Mag One DUO is a universal central heating filter which can provide long-term protection to the heating systems of your customers, whether you are fitting a new oil boiler or heat pump or requiring system protection for an existing installation. Designed to effectively prevent the build up of non-magnetic and magnetic debris within the system pipework, a heating filter, such as the Mag One DUO, can not only provide long-term system protection, it can also improve the lifespan of the heating system and increase its overall effectiveness.

The Mag One DUO filter is straightforward to install, simple to clean and easy to drain so it is installer-friendly for both installation and servicing. It also provides installers and heating engineers with a solution for system protection for different types of heating systems as the Mag One DUO is compatible with oil boilers, gas boilers, hybrid systems and air source heat pumps. Using direct filtration, as opposed to a bypass, the Mag One DUO is designed to ensure that 100% of the circulated water passes through its filter cartridge, resulting in excellent overall filtration levels. The installation of a Mag One DUO is also a requirement for some G1 guarantees, including the 10 year G1 guarantee available on Vortex Pro oil-fired boilers (terms and conditions apply).

Features and Benefits

Uses 12,000 gauss neodymium magnet to capture system magnetic debris
Captures fine non-ferrous particles using a 500-micron mesh gauze to ensure maximum system protection for traditional fossil fuel systems and air source heat pump systems
Suitable for installation with new heating systems or can be retrofitted to an existing installation
Direct filtration design with improved overall filtration levels (compared to Vortex Mag One filter)
Incorporates larger diameter internal waterway to reduce pressure drop through the filter
Suitable for systems using a boiler up to 36kW in heating output and heat pump systems up to 10kW heating output for larger heating systems, two Mag One DUO filters can be fitted in a parallel circuit
Features a hose adaptor for remote draining
Supplied with full bore flat face 28mm chrome isolation valves with 22mm reducers
Designed to work with 120 degrees maximum working temperature and 6 bar maximum working pressure
Suitable for 360 degree installation
Compatible with all system inhibitors and glycol solutions
Provides convenient means of dosing systems with corrosion inhibitor

The Grant Mag One DUO is an effective magnetic filter for use with boilers and air source heat pumps which is designed to capture non-ferrous debris and magnetite circulating within central heating systems.

Installing a suitable magnetic filter to a heating system is strongly recommended as it can prevent the accumulation of debris within the system pipework which can cause damage to the wider system and components. The Grant Mag One DUO is a universal central heating filter which can provide long-term protection to the heating systems of your customers, whether you are fitting a new oil boiler or heat pump or requiring system protection for an existing installation. Designed to effectively prevent the build up of non-magnetic and magnetic debris within the system pipework, a heating filter, such as the Mag One DUO, can not only provide long-term system protection, it can also improve the lifespan of the heating system and increase its overall effectiveness.

The Mag One DUO filter is straightforward to install, simple to clean and easy to drain so it is installer-friendly for both installation and servicing. It also provides installers and heating engineers with a solution for system protection for different types of heating systems as the Mag One DUO is compatible with oil boilers, gas boilers, hybrid systems and air source heat pumps. Using direct filtration, as opposed to a bypass, the Mag One DUO is designed to ensure that 100% of the circulated water passes through its filter cartridge, resulting in excellent overall filtration levels. The installation of a Mag One DUO is also a requirement for some G1 guarantees, including the 10 year G1 guarantee available on Vortex Pro oil-fired boilers (terms and conditions apply).

Features and Benefits

Uses 12,000 gauss neodymium magnet to capture system magnetic debris
Captures fine non-ferrous particles using a 500-micron mesh gauze to ensure maximum system protection for traditional fossil fuel systems and air source heat pump systems
Suitable for installation with new heating systems or can be retrofitted to an existing installation
Direct filtration design with improved overall filtration levels (compared to Vortex Mag One filter)
Incorporates larger diameter internal waterway to reduce pressure drop through the filter
Suitable for systems using a boiler up to 36kW in heating output and heat pump systems up to 10kW heating output for larger heating systems, two Mag One DUO filters can be fitted in a parallel circuit
Features a hose adaptor for remote draining
Supplied with full bore flat face 28mm chrome isolation valves with 22mm reducers
Designed to work with 120 degrees maximum working temperature and 6 bar maximum working pressure
Suitable for 360 degree installation
Compatible with all system inhibitors and glycol solutions
Provides convenient means of dosing systems with corrosion inhibitor

No extended details available.

Data Sheet
